電氣成套設備它是電氣設備，和開關、接觸器、斷路器、變壓器是一類的。

Electrical complete sets of equipment are first and foremost electrical equipment, similar to switches, contactors, circuit breakers, and transformers.

但是它有獨特性，因?yàn)樗浅商椎模?也就是說是把一系列的設備通過一定的規范(  圖紙、技術要求、工藝要求) 組合在一起，形成一個有機的整體，這樣的設備叫電氣成套設備。

But it has its uniqueness because it is a complete set, which means that a series of equipment is combined through certain specifications (drawings, technical requirements, process requirements) to form an organic whole, such equipment is called an electrical complete set.

通常咱們做的開關柜、箱式變電站等都算作電氣成套設備。

Usually, the switchgear and box type substations we make are considered as complete electrical equipment.

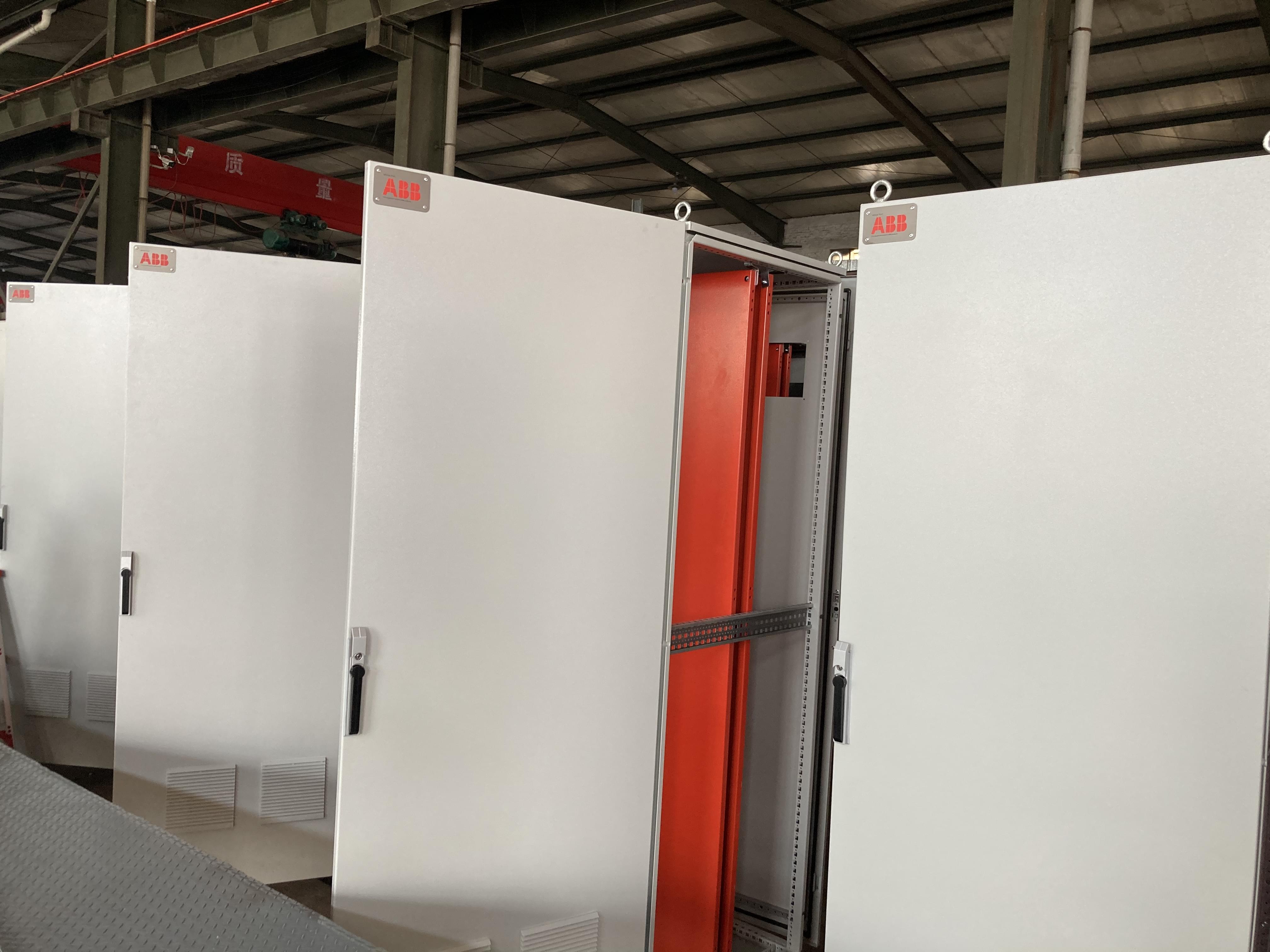

電氣成套裝置在電力行業中得到廣泛應用，如電氣成套配電柜是安裝電力設備的機柜，具有保護安裝在其內部的電力設備的作用。

Electrical complete sets of devices are widely used in the power industry, such as electrical complete distribution cabinets, which are cabinets for installing power equipment and have the function of protecting the power equipment installed inside them.

在配電變電站中，各類不同類型的配電設施都通過電氣成套配電柜進行整齊擺放。

In distribution substations, various types of distribution facilities are neatly arranged through electrical complete distribution cabinets.

采用電氣成套配電柜，可以提高配電設備的美觀性，不會出現零亂的現象。

By using a complete set of electrical distribution cabinets, the aesthetics of the distribution equipment can be improved first, and there will be no disorderly phenomena.

當配電系統出現故障時，也容易對故障進行查找，縮短配電系統的故障時間，提高對配電系統故障的處置效率。

When there is a fault in the distribution system, it is also easy to search for the fault, shorten the fault time of the distribution system, and improve the efficiency of handling faults in the distribution system.

其次，采用電氣成套裝置可以保證配電設備不會受到灰塵的影響，提高配電設備運行的穩定性和可靠性。

Secondly, the use of complete electrical equipment can ensure that the distribution equipment is not affected by dust, and improve the stability and reliability of the operation of the distribution equipment.

通過將配電設備放入電氣成套裝置中，這樣其他的小動物難以對配電設備造成破壞，有利于保證配電系統的。

By placing the distribution equipment into the electrical complete set, it is difficult for other small animals to cause damage to the distribution equipment, which is conducive to ensuring the safety of the distribution system.

02高低壓成套電氣設備的應用

Application of 02 High and Low Voltage Complete Electrical Equipment

電氣成套開關設備

Electrical complete switchgear

電氣成套開關設備是成套開關電氣中的一類重要設備，目 前在多個行業中都有應用。

Electrical switchgear is an important type of equipment in the field of electrical switchgear, which is currently applied in multiple industries.

目前的低壓開關柜在結構上存在 著一定的問題，如門上沒有柜門限位機構。

The current low-voltage switchgear has certain structural problems, such as the lack of a cabinet door limit mechanism on the door.

這樣的開關柜設計 在實際應用中會存在著一定的問題，如當門打開后，因安裝傾 斜或風吹的原因，門會自動關上，引起不必要的麻煩。

This type of switchgear design may have certain problems in practical applications, such as when the door is opened, it will automatically close due to installation tilting or wind blowing, causing unnecessary trouble.

高低壓成套柜保護裝置

High and low voltage complete cabinet protection device

電氣成套裝置結構設計理論在實際中具有多種不同的應用，如高低壓成套柜保護裝置，這種裝置包括成套柜本體、高壓柜門、散熱風扇、裝置和低壓柜門。

The structural design theory of electrical complete equipment has various practical applications, such as high and low voltage complete cabinet protection devices, which include the complete cabinet body, high voltage cabinet door, heat dissipation fan, dehumidification device, and low voltage cabinet door.

成套柜本體的底端設有萬向輪，成套柜本體靠近高壓柜門的內部一側設有溫度傳感器，成套柜本體靠近高壓柜門的內部另一側設有濕度傳感器， 散熱風扇與裝置的上方均與驅動裝置電性連接，高壓柜門與低壓柜門的連接處設有水平絕緣分隔板。

The bottom end of the complete cabinet body is equipped with a universal wheel. A temperature sensor is installed on the inner side of the complete cabinet body near the high-voltage cabinet door, and a humidity sensor is installed on the other side of the complete cabinet body near the high-voltage cabinet door. The upper part of the cooling fan and dehumidification device is electrically connected to the driving device. A horizontal insulation partition plate is installed at the connection between the high-voltage cabinet door and the low-voltage cabinet door.

這種裝置通過散熱風扇與裝置進行散熱，提高了散熱效率。

This device improves the efficiency of heat dissipation and dehumidification by using a cooling fan and dehumidification device for heat dissipation and dehumidification.

且利用水平絕緣分隔板等結構實現絕緣，避免了各柜體之間漏電損害或產生電弧等，配合金屬電阻器等結構降低損害，提高了性，電流檢測裝置等結構實時監控電流，進一步保護了 該柜體使用性。

And insulation is achieved by using structures such as horizontal insulation partition boards, avoiding leakage damage or arc generation between cabinets. Combined with structures such as metal resistors, the damage is reduced and safety is improved. Current detection devices and other structures monitor current in real-time, further protecting the safety of the cabinet's use.
