電工兄弟們都清楚，MNS低壓抽屜柜是低壓配電系統里的核心設備，不管是工業廠房的動力配電，還是商業建筑的日常供電，都離不開它的穩定運行。不少同行在現場施工時，常因安裝調試的細節不到位，導致后期出現供電不穩、抽屜卡滯等問題。今天就結合施工現場實拍經驗，把MNS低壓抽屜柜安裝調試的關鍵要點講透，全是實操干貨，收藏好照著做，能少走不少彎路。

　　Electricians are aware that MNS low-voltage drawer cabinets are the core equipment in low-voltage distribution systems. Whether it is power distribution in industrial plants or daily power supply in commercial buildings, their stable operation is indispensable. Many colleagues often encounter problems such as unstable power supply and drawer jamming during on-site construction due to inadequate installation and debugging details. Today, based on the practical experience of on-site construction, we will explain the key points of installation and commissioning of MNS low-voltage drawer cabinets. All of them are practical and practical knowledge. Collecting and following them can save a lot of detours.

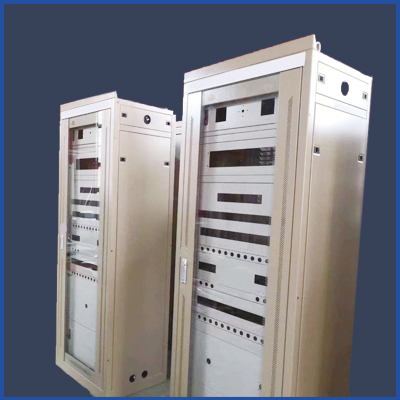

　　先跟新手兄弟科普下，MNS低壓抽屜柜屬于低壓抽出式開關柜，優勢特別突出：結構緊湊不占地方，防護等級高，能有效隔絕灰塵、水汽對內部元件的影響；而且通用性強，抽屜單元可以根據電路需求靈活組合，后期維護時直接抽出對應抽屜就能操作，不用大面積停電，大大提升了維護效率。也正因?yàn)檫@些特性，它才成為工業、商業等各類大型配電項目的設備。

　　Let's first explain to novice brothers that MNS low-voltage drawer cabinets belong to low-voltage withdrawable switchgear, with particularly outstanding advantages: compact structure that does not take up space, high protection level, and can effectively isolate the influence of dust and water vapor on internal components; Moreover, it has strong universality, and the drawer unit can be flexibly combined according to circuit requirements. During later maintenance, the corresponding drawer can be directly pulled out for operation without the need for large-scale power outages, greatly improving maintenance efficiency. It is precisely because of these characteristics that it has become the preferred equipment for various large-scale power distribution projects such as industrial and commercial ones.

　　現場安裝調試，核心就是抓“牢固、規范、嚴謹”三個關鍵詞，這幾個關鍵步驟一步都不能?。?/p>

　　The core of on-site installation and debugging is to grasp the three key words of "firmness, standardization, and rigor", and none of these key steps can be skipped:

　　步，基礎固定必須牢。這是保障設備長期穩定運行的根基，千萬別馬虎。安裝前先仔細檢查柜體的平整度，看看有沒有變形、磕碰的情況。確認無誤后，把柜體對準預設的基礎位置，用膨脹螺栓牢牢固定住。固定后一定要檢查柜體是否垂直，用手晃動下看看有沒有松動，確保完全穩固。要是基礎沒固定好，后期設備運行時容易產生共振，不僅會有異響，還可能導致內部接線松動，引發隱患。

　　The first step is to firmly fix the foundation. This is the foundation for ensuring the long-term stable operation of equipment, don't be careless. Before installation, carefully check the flatness of the cabinet to see if there is any deformation or collision. After confirming the accuracy, align the cabinet with the preset base position and firmly fix it with expansion bolts. After fixing, be sure to check if the cabinet is vertical and shake it by hand to see if it is loose, ensuring complete stability. If the foundation is not fixed properly, resonance is likely to occur during the later operation of the equipment, which may not only cause abnormal noise, but also lead to loose internal wiring, causing safety hazards.

　　第二步，抽屜單元安裝要規范。抽屜是核心工作單元，安裝不當很容易出現卡滯、接觸不良的問題。推進抽屜時一定要輕推慢放，讓抽屜順著導軌平穩推進，確保和柜體上的卡槽精準對接。推進到位后，要確認抽屜的鎖定裝置已經卡緊，用手拉一拉試試，確保不會輕易松動。另外要注意，不同規格的抽屜單元必須按設計圖紙上的位置對應安裝，不能圖省事混裝，不然會導致電路對接錯誤，影響后續使用。

　　Step two, the installation of drawer units should be standardized. Drawers are the core working units, and improper installation can easily lead to problems such as jamming and poor contact. When pushing the drawer, be sure to push it gently and slowly, allowing the drawer to smoothly move along the guide rail and ensure precise alignment with the card slot on the cabinet. After pushing it in place, make sure that the locking device of the drawer is securely fastened. Try pulling it by hand to ensure that it will not easily loosen. In addition, it should be noted that drawer units of different specifications must be installed according to the positions on the design drawings, and cannot be mixed together for convenience, otherwise it will cause circuit docking errors and affect subsequent use.

　　第三步，接線操作必須嚴謹。接線是考驗技術的環節，也是隱患的高發區。接線前一定要先核對設計圖紙，確認線纜的規格和抽屜單元的額定電流匹配，避免小規格線纜承載大電流導致過熱。接線時，端子壓接要牢固，用手輕輕拽一拽線纜，確保沒有松動、虛接的情況。更關鍵的是，相線、零線、地線要區分清晰，接線順序不能搞反，建議用不同顏色的線纜區分，避免出現短路、漏電等嚴重問題。

　　The third step is that the wiring operation must be rigorous. Wiring is the most technically challenging link and also a high-risk area for safety hazards. Before wiring, it is necessary to check the design drawings to confirm that the specifications of the cables match the rated current of the drawer unit, in order to avoid overheating caused by small cables carrying large currents. When wiring, the terminal crimping should be firm. Gently pull the cable with your hand to ensure that there is no looseness or virtual connection. More importantly, the phase line, neutral line, and ground line should be clearly distinguished, and the wiring sequence should not be reversed. It is recommended to use cables of different colors to distinguish and avoid serious problems such as short circuits and leakage.

　　第四步，調試測試不能少，這是檢驗安裝質量的一道關卡。主要分三個環節：是手動測試，反復推拉各個抽屜，檢查抽屜進出是否順暢，鎖定機構有沒有卡頓、不靈敏的情況；然后是通電測試，接通電源后，逐一測試每個抽屜單元的分合閘功能，觀察對應的指示燈是否正常顯示，確認電路接通正常；是保護功能測試，通過設備模擬過載、短路等故障場景，檢查柜體的保護裝置是否能及時動作跳閘，確保能在故障時快速切斷電源，保障供電。

　　The fourth step is debugging and testing, which is the final hurdle in verifying installation quality. It mainly consists of three steps: firstly, manual testing, repeatedly pushing and pulling each drawer, checking whether the drawer enters and exits smoothly, and whether the locking mechanism is stuck or insensitive; Next is the power on test. After connecting the power supply, test the opening and closing functions of each drawer unit one by one, observe whether the corresponding indicator lights are displaying normally, and confirm that the circuit is connected normally; Finally, there is a protection function test, which simulates overload, short circuit and other fault scenarios through professional equipment to check whether the protection device of the cabinet can trip in a timely manner, ensuring that the power can be quickly cut off in case of a fault and ensuring power supply safety.

　　給現場施工的兄弟們提幾個小提醒：施工時一定要做好個人防護，所有接線、調試操作必須在斷電狀態下進行，避免觸電風險；安裝過程中要保持柜體內部清潔，別讓灰塵、雜物掉進內部元件里，不然容易影響元件性能；調試完成后，要詳細做好施工記錄，把每個抽屜單元的測試情況、接線信息都記清楚，方便后期維護檢修時查閱。

　　Finally, a few small reminders for on-site construction brothers: personal protection must be taken during construction, and all wiring and debugging operations must be carried out in a power-off state to avoid the risk of electric shock; During the installation process, the interior of the cabinet should be kept clean to prevent dust and debris from falling into the internal components, otherwise it may affect the performance of the components; After debugging is completed, detailed construction records should be kept, recording the testing and wiring information of each drawer unit clearly for easy reference during later maintenance and repair.

　　其實MNS低壓抽屜柜的安裝調試，沒有想象中復雜，只要把基礎固定、抽屜安裝、接線、調試這幾個關鍵環節做規范，就能保障配電系統的穩定運行。對于電工來說，這些細節不僅是技術能力的體現，更是保障用電的責任。希望這些干貨能幫到大家，覺得有用的話，不妨轉發給身邊的同行，一起交流學習，提升施工質量。

　　In fact, the installation and debugging of MNS low-voltage drawer cabinets are not as complicated as imagined. As long as the key links of foundation fixation, drawer installation, wiring, and debugging are standardized, the stable operation of the power distribution system can be guaranteed. For electricians, these details are not only a reflection of technical ability, but also a responsibility to ensure electrical safety. I hope these valuable insights can be helpful to everyone. If you find them useful, feel free to share them with your peers and learn from them together to improve the quality of construction.
